PUR Spray PE Wrapping Pre-Insulated Pipe Production Line – High-Density PU Foam Insulation for Heating, Cooling & Oil Pipelines

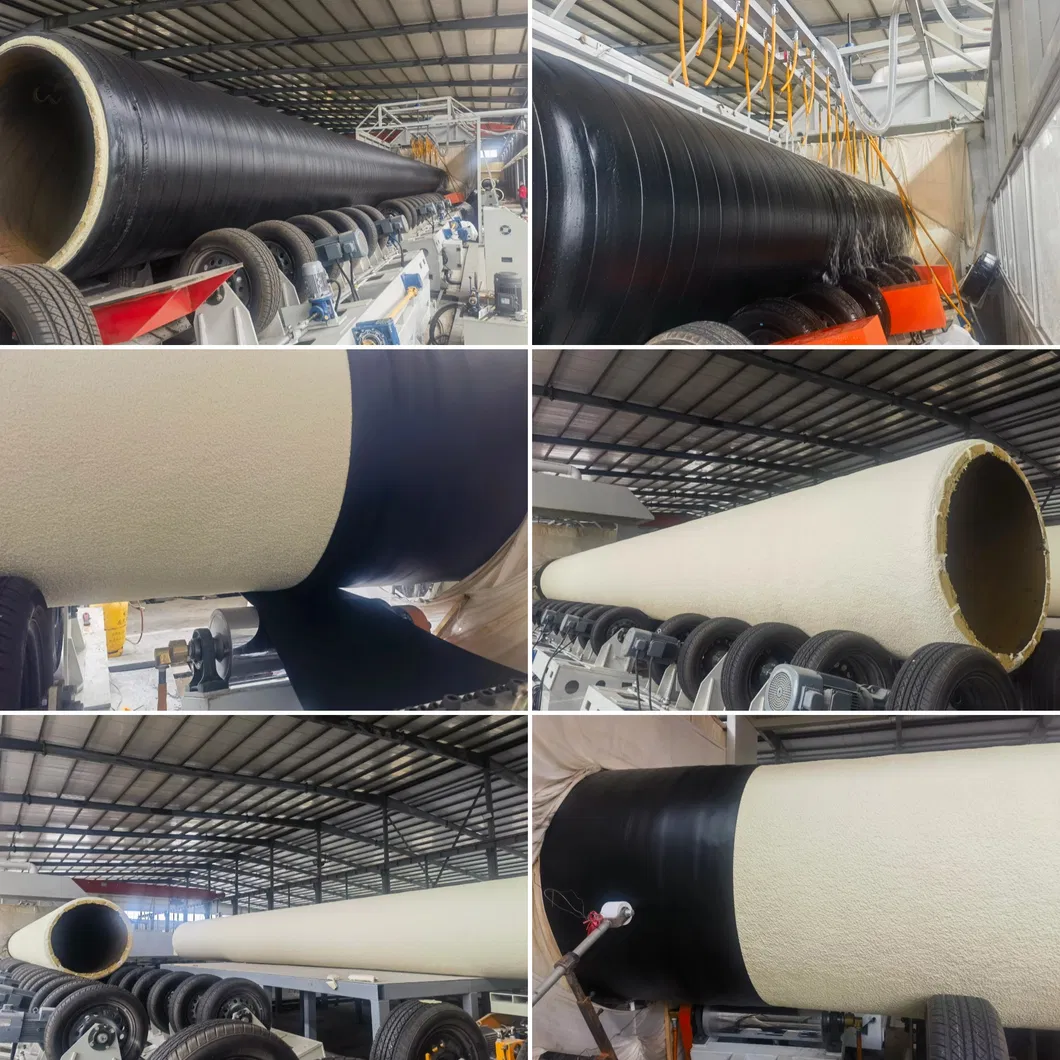

The rigid polyurethane spraying polyethylene winding prefabricated direct-buried insulation pipe consists of three primary layers:

1. Working Steel Pipe: The inner steel pipe is used for conveying the medium (e.g., hot water, chilled water, oil).
2. Sprayed Polyurethane Rigid Foam Insulation Layer: Provides excellent thermal insulation with uniform and controllable density, ensuring no empty spaces.
3. Winding Polyethylene Outer Casing: Protects the insulation layer and provides mechanical strength for direct burial.

• Anti-corrosion and Thermal Insulation: Ideal for pipelines in heating, cooling, and crude oil transport.
• Medium Temperature: ≤120°C (incidental peak up to <140°C).
• Medium Pressure: ≤2.5 MPa.
• Laying Methods: Primarily for direct burial; also suitable for trench or overhead pipeline installations.

1. Uniform & Controllable Density: Ensures consistent thermal performance.
2. No Voids in Insulation: Rigid foam fills all spaces for maximum efficiency.
3. High Shear Strength: Rough foam surface provides friction >200KPa with the PE casing.
4. Adjustable Thickness: Thickness of insulation and casing can be tailored to project specifications.
5. High Automation: Streamlined, automated production for quality and efficiency.

The spraying and winding production process ensures uniform insulation density, improves product quality, and reduces production costs.

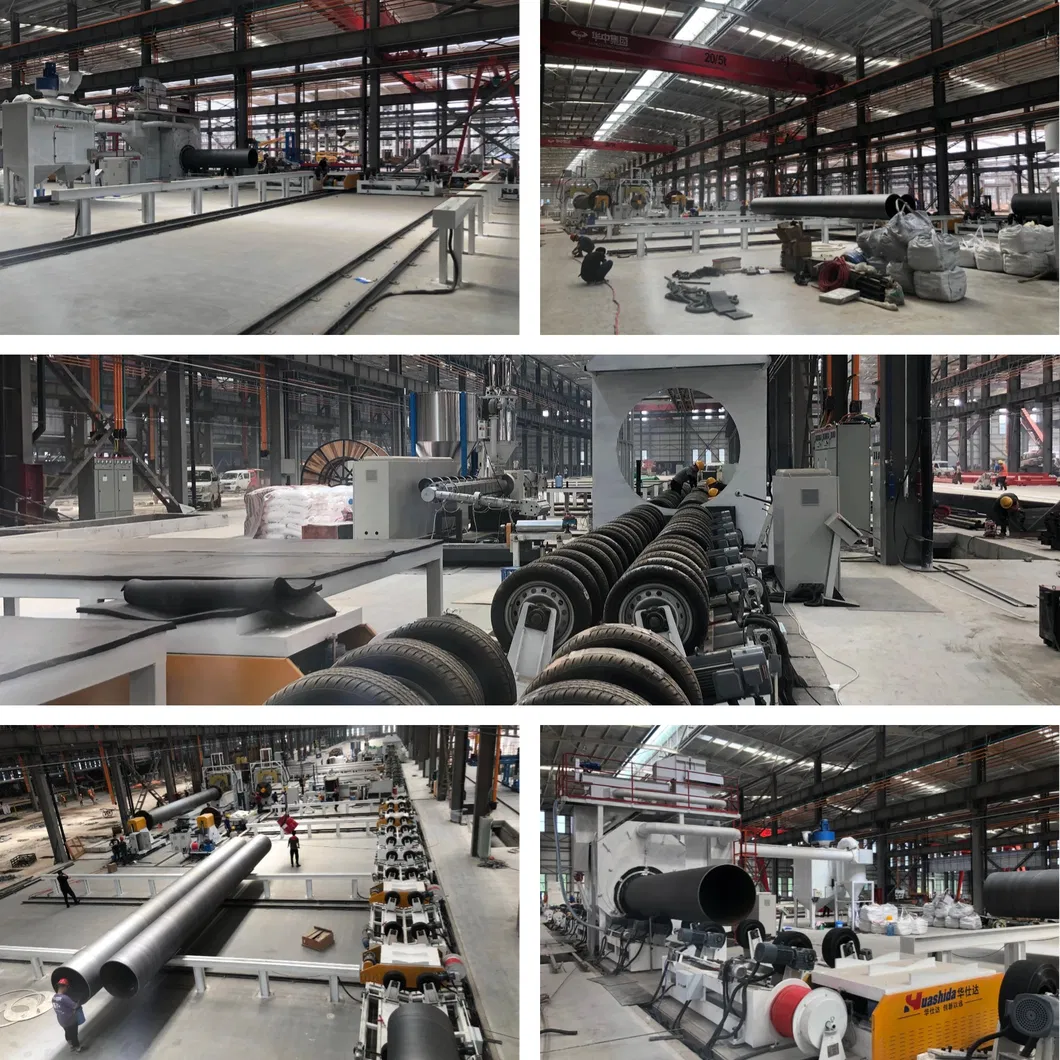

The PUR spray PE winding pre-insulated pipe production line includes:

1. Steel Pipe Outer Wall Shot Blasting Line: Prepares the steel pipe surface for optimal adhesion.
2. Polyurethane Spray Molding Line: Applies a uniform layer of rigid foam insulation.
3. Polyethylene Sheet Extruding & Winding Line: Forms and wraps the protective PE outer casing.
4. Water Cooling Line: Cools and solidifies the casing after application.
5. End-Cutting Equipment: Trims pipe ends for precise length and clean edges.
