Preinsulated Pipe Machine HDPE Jacket Pipe Machine Production Line

Name: Preinsulated Pipe Machine HDPE Jacket Pipe Machine Production Line
Brand: Huashida
Price: 100 USD

Brand Name : Huashida

Model Number : 110-560

Certification : CE, Rohs，TUV

Place of Origin : China

MOQ : 1 set

Price : US$100,000.00-3,000,000.00

Payment Terms : T/T

Supply Ability : 50 sets/years

Delivery Time : 70-90 days

Packaging Details : wodden box

Contact Now

Preinsulated Pipe Machine HDPE Jacket Pipe Machine Production Line

Basic Info.

Model NO.

110-1860 mm

Screw No.

Single-screw

Automation

Automatic

Computerized

Certification

ISO9001:2008

Customized

Condition

New

Pipe Material

PE, HDPE

Calibration Method

Vacuum Calibration

Cooling Method

Water

Diameter Range

110-1860 mm

Transport Package

Standard Package

Specification

ISO9001: 2008

Trademark

HSD

Origin

Qingdao China

HS Code

8477209000

Production Capacity

50 Sets/Year

Packaging & Delivery

Package Size

1000.00cm * 220.00cm * 260.00cm

Package Gross Weight

4000.000kg

Product Description

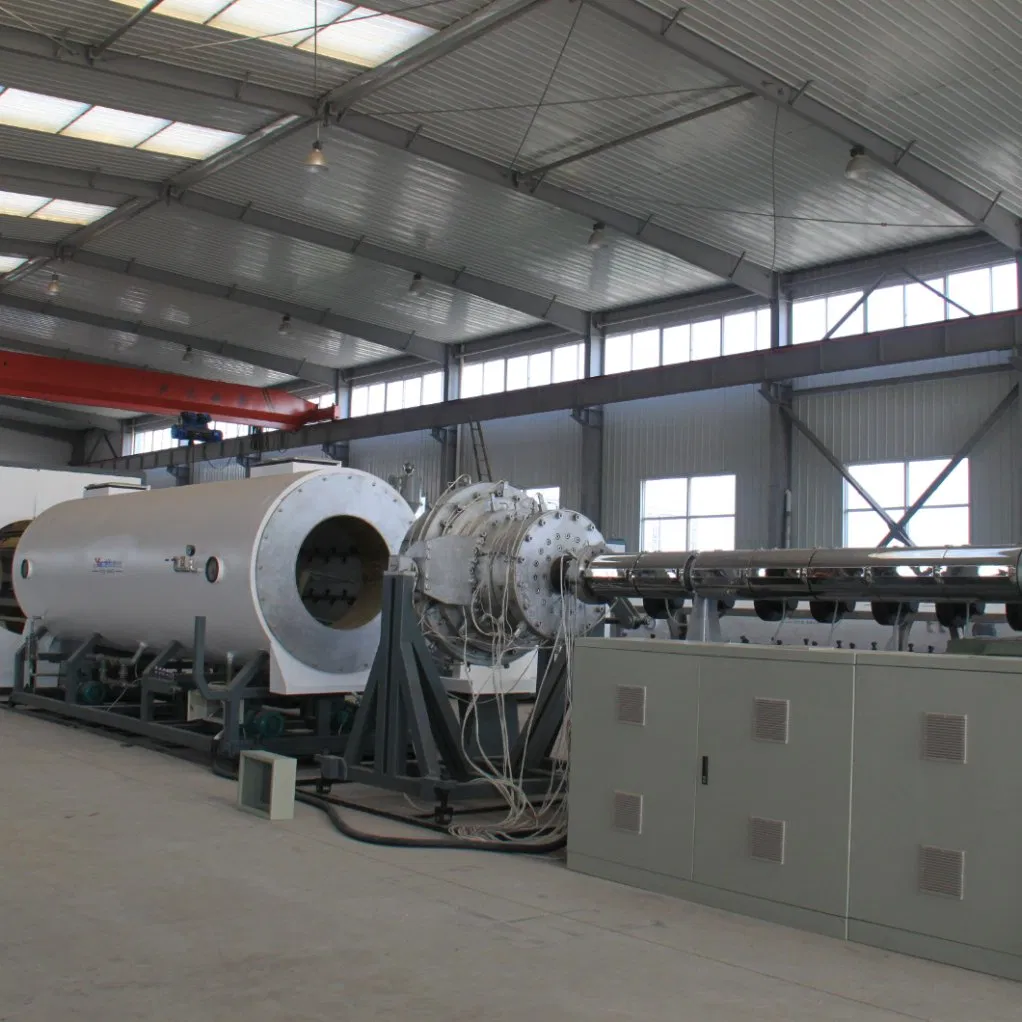

Preinsulated pipe machine HDPE Jacket pipe machine production line

Polyurethane Foam Pre-insulated Pipe HDPE Casing Jacket Pipe Machine is high-efficiency equipment with high speed and energy saving for producing HDPE pipe used as a protective cover of PU foam thermal Pre-insulated Pipe according to international standards.
The HDPE shell pipe is produced by vacuum calibrating method with smooth internal and external walls, long service life, good anti-corrosion insulation and mechanical performance.

Pipe Application: the outer protective casing of PUF thermal insulated pipe, which is widely used in central heating, cooling oil&gas transmission and other industrial areas.

Production range: 90-2000mm (by different models)

Production line composition:
-1 set Vacuum loader
-1 set Hopper dryer
-1 set High-efficiency single screw extruder
-1 set Vacuum calibration table
-1 set Water spraying tank
-1set Hauling machine
-1 set Cutting machine
-1 set Discharging Frame

Style	PE-110/600	PE-365/760	PE-655/1380	PE-960/1680	PE-1054/1860
Main Extruder	SJ-75/33	SJ-90/33	SJ-120/33	SJ-150/33	SJ-150/33
Pipe diameter	Φ110-600mm	Φ365-760m	Φ655-1380mm	Φ960-1680mm	Φ1054-1860mm
Capacity	250-350kg/h	400-500kg/h	700-900kg/h	1000-1200kg/h	1000-1250kg/h
Installed power	160kw	240kw	480kw	580kw	580kw
Length	26m	32m	36m	40m	45m

-small dimension
-high degree of automation, can be operated by one person, saving labor costs.
-long service life.
-high-efficiency extruder gives larger output and stable performance.
-pipe wall is average and smooth
-no waste of raw material
-once forming. No need to trim the edge.
