Product Description
The production line adopts international advanced technology, combining modern automation with efficient production processes, which can significantly improve production efficiency and reduce production costs. Has good sealing performance, no chemical corrosion or oxidation in the inner tube.Widely used in fields such as building water supply and refrigeration systems.
This kind of pipe is a new generation of PU insulation pipe, with many advantages, such as light, easy operation, few joints, and good flexibility.
It is mainly used to transport heat from main pipe system to housing estate or buildings.
Product Parameters
| Model | Dia.Range | Extruder | Power | Capacity |
| PERT-110 | 20-110 | 60/33 | 150kw | 180kg |
| PERT-250 | 75-250 | 75/35 | 220kw | 250kg |
| PERT-350 | 160-350 | 90/33 | 260kw | 500kg |
PE-RTII Heating Pipe Structure
- PERT Work pipe; 2- Protective pipe; 3-Insulated pipe; 4-Stander;
- d1- Protective pipe outer diameter; e1- Protective pipe wall thickness; e2- Insulation Layer thickness;
- dn-Work pipe Nominal diameter ;en- Nominal thickness of the work tube.
Feature
PE-RTII insulation pipe√ PERT II Pipes Can Tolerate Temperatures of 110°C
√ Pipeline smooth, no impurities, no pollution
√ Heating companies can realize unattended, automated operation
√ Low temperature heating
√ 60 °C supply water 45 °C backwater to meet the heating demand.
√ The construction is simple and convenient, and the excavation amount is 40%
√ Greatly reduce construction costs
It saves the raw materials for using PE-RT II pipe.
Example: Level 2 design pressure: 10 Bar; for cold and hot water transfer in buildings
Selection of different material pipes: the highest PE-RTIIS value; the thinnest wall thickness
Compared to PERT I, PERT II can reduce material use by 15%
Relative to PP-R, PERT II can reduce material use by 30%
Note: According to relevant Chinese national standards and draft
| s | Dia.(mm) | Wall Thickness(mm) | Wall Thickness Area(m2) | Density(kg/m3) | Length(m) | Weight
(kg) | Weight Save
PERT/X |
| PERT II | S3.2 | 16 | 2.2 | 9.5E-05 | 947 | 1000 | 90 |
|
| PERT I | S2.5 | 16 | 2.7 | 1.1E-04 | 933 | 1000 | 105 | -17% |
| PP-R | S2 | 16 | 3.3 | 1.3E-04 | 900 | 1000 | 118 | -31% |
|
| PERT II | S3.2 | 20 | 2.8 | 1.5E-04 | 947 | 1000 | 143 |
|
| PERT eI | S2.5 | 20 | 3.4 | 1.8E-04 | 933 | 1000 | 165 | -15% |
| PP-R | S2 | 20 | 4.1 | 2.0E-04 | 900 | 1000 | 184 | -29% |
|
| PERT II | S3.2 | 25 | 3.5 | 2.4E-04 | 947 | 1000 | 224 |
|
| PERT I | S2.5 | 25 | 4.2 | 2.7E-04 | 933 | 1000 | 256 | -14% |
| PP-R | S2 | 25 | 5.1 | 3.2E-04 | 900 | 1000 | 287 | -28% |
|
| PERT II | S3.2 | 32 | 4.4 | 3.8E-04 | 947 | 1000 | 361 |
|
| PERT I | S2.5 | 32 | 5.4 | 4.5E-04 | 933 | 1000 | 421 | -17% |
| PP-R | S2 | 32 | 6.5 | 5.2E-04 | 900 | 1000 | 469 | -30% |
Equipment Composition

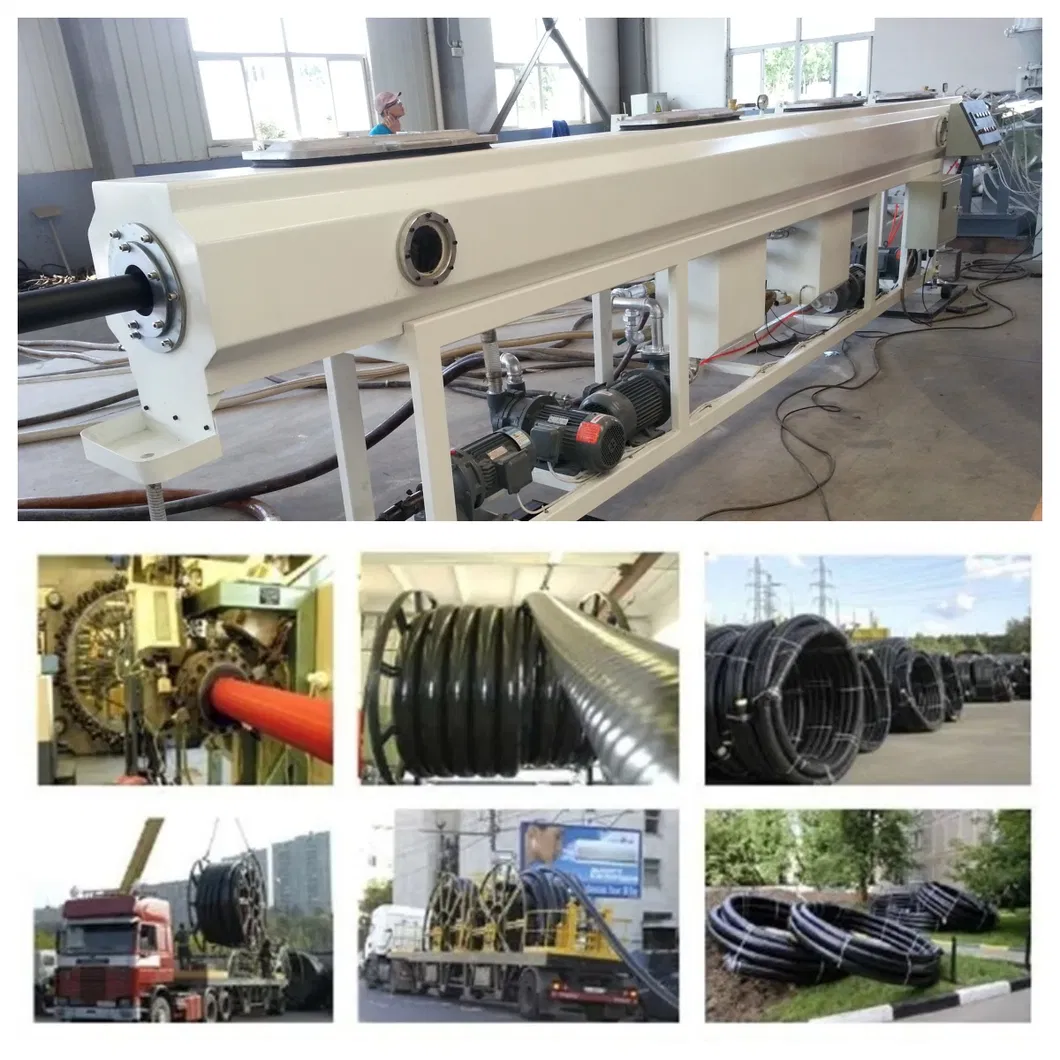

The flexible pre-insulated pipes production line consists of the following components:
1) Production line for inner pressure pipe (PERT, PEX)
2) Inner pipe unwinding device
3) Pipe feeding device
4) Conveyor
5) Pipe centering device
6) Preheating and temperature control
7) Film feeding device
8) High-precision foaming machine
9) Forming machine with temperature control
6) Extruder for casing pipe and water cooling
7) Pull-off device

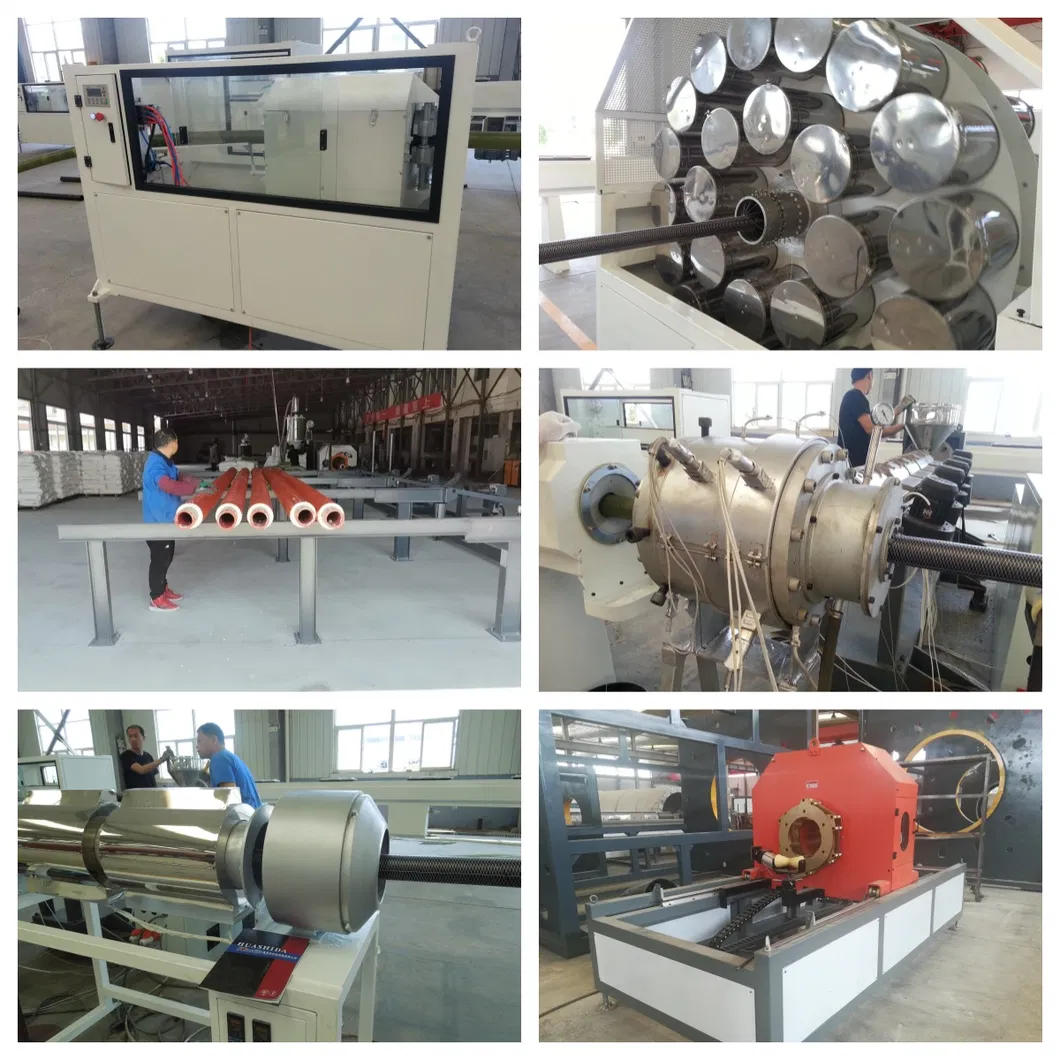

8) Winding machine Detail photos
Production Applications

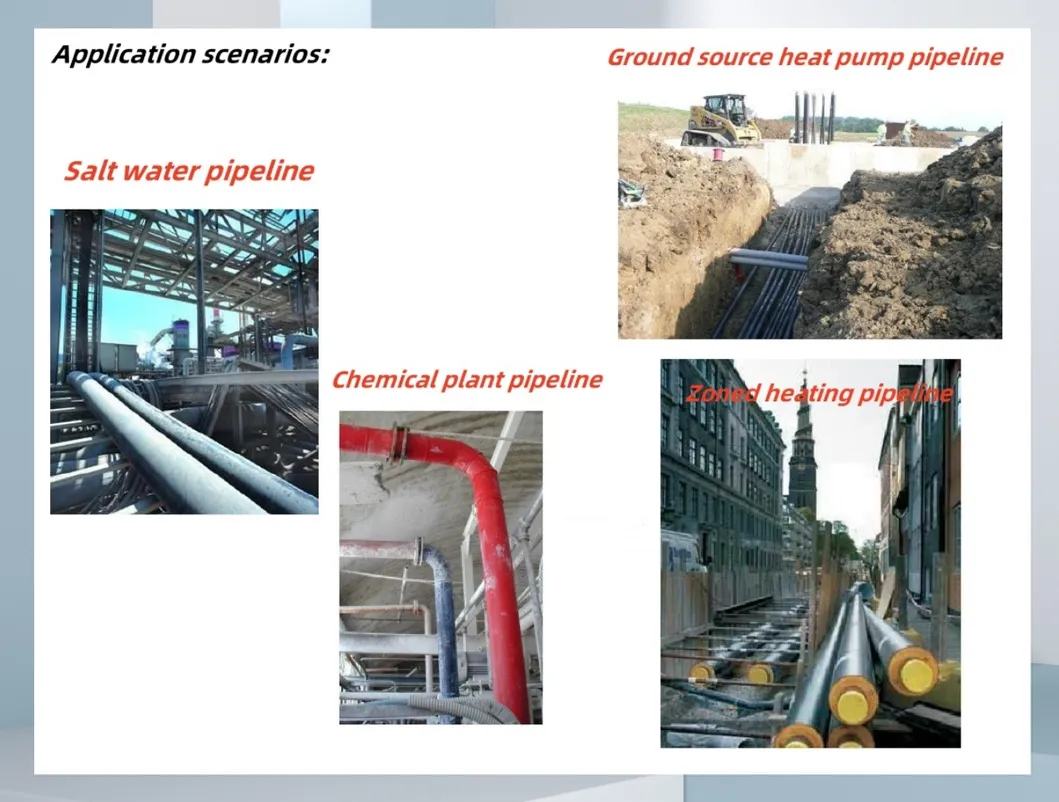

Huashida's continuous PERT flexible insulated pipe pipes are ideal for a wide range of applications, including district heating, cooling systems, oil and gas pipelines, and industrial piping. Their superior insulation, anti-corrosion properties, and long service life make them the preferred choice for modern, sustainable piping systems.
