Insulation Pipe Production Line Water Supply Pipe Municipal Engineering Black Jacket Insulation Pipe Extruder 420-2000 mm
Product Description
Polyurethane Foam Pre-insulated Pipe HDPE Casing Jacket Pipe Machine is high-efficiency equipment with high speed and energy saving for producing HDPE pipe used as a protective cover of PU foam thermal Pre-insulated Pipe according to international standards.
The HDPE shell pipe is produced by vacuum calibrating method with smooth internal and external walls, long service life, good anti-corrosion insulation and mechanical performance.
Production range: 110-2000mm (by different models)

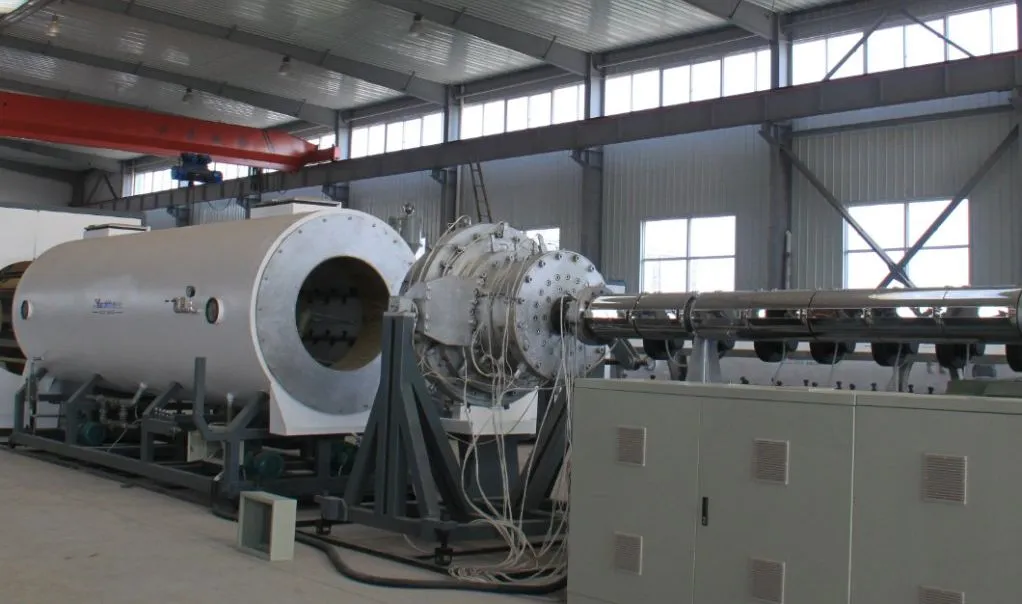

Production line composition:
-1 set Vacuum loader
-1 set Hopper dryer
-1 set High-efficiency single screw extruder
-1 set Vacuum calibration table
-1 set Water spraying tank
-1set Hauling machine
-1 set Cutting machine
-1 set Discharging Frame
| Style | PE-110/600 | PE-365/760 | PE-655/1380 | PE-960/1680 | PE-1054/1860 |
| Main Extruder | SJ-75/33 | SJ-90/33 | SJ-120/33 | SJ-150/33 | SJ-150/33 |
| Pipe diameter | Φ110-600mm | Φ365-760m | Φ655-1380mm | Φ960-1680mm | Φ1054-1860mm |
| Capacity | 250-350kg/h | 400-500kg/h | 700-900kg/h | 1000-1200kg/h | 1000-1250kg/h |
| Installed power | 160kw | 240kw | 480kw | 580kw | 580kw |
| Length | 26m | 32m | 36m | 40m | 45m |
Certifications
Our machines make products what are widely used as

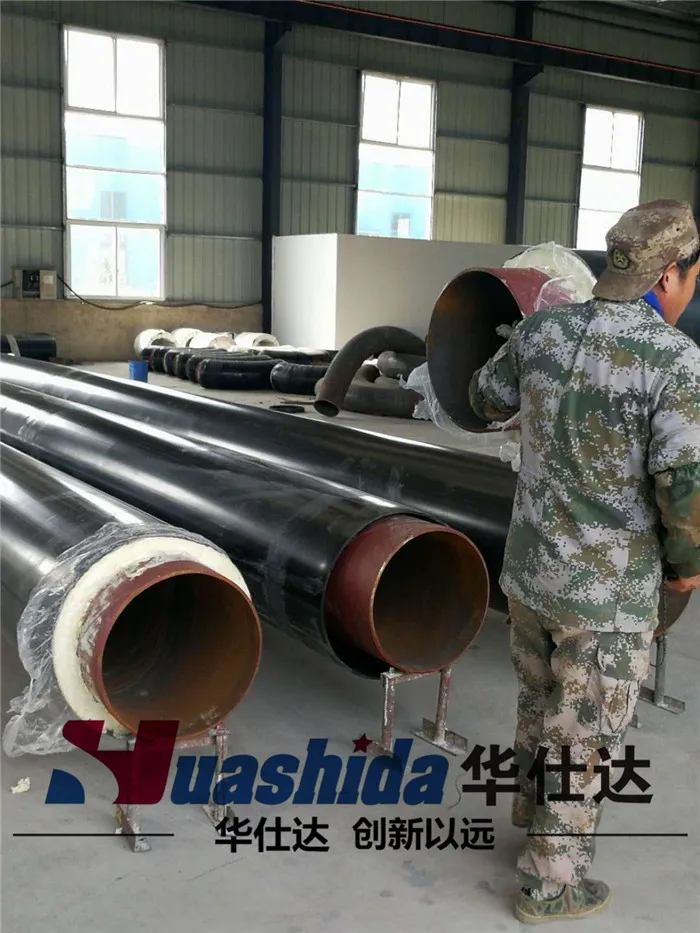

jacket pipe of PU foam insulation pipe in municipal heating pipe system;
municipal water supplying and drainage pipeline;
oil and gas pipeline;
pipe joints of plastic drainage water pipes,
PU foam insulation pipelines,
2PE/3PE oil and gas pipelines;
Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines;
