HDPE Polyurethane Spray Foam Insulated Pipe Machine 500-1600mm

Name: HDPE Polyurethane Spray Foam Insulated Pipe Machine 5001600mm
Brand: HUASHIDA
Price: 100 USD

China HDPE Polyurethane Spray Foam Insulated Pipe Machine 500-1600mm wholesale

Brand Name : HUASHIDA

Model Number : 50-1600MM

Certification : CE, ISO9001:2008

Place of Origin : QINGDAO,CHINA

MOQ : 1

Price : US$100,000.00 - 1,300,000.00

Payment Terms : L/C,D/P,T/T

Supply Ability : 30 Sets/Year

Delivery Time : 60DAYS

Packaging Details : Wodden Box

Raw Material : HDPE

Principle : High-Pressure Air Type

Type : Polyurethane Foam Machine

Pipe Structure : Carrier Steel Pipe-Polyurethane Foam-HDPE Casing

Capacity : 1400kg

Contact Now

PE-Coated PU Spray Foam Insulated Pipe Making Machine for Heating /Hot/cooling water

Pipe diameter range: 500-1600MM
Our company independently developed the spray winding insulation pipe production line, which consists of three parts: shot blasting and rust removal production line, polyurethane spraying production line, and PE winding production line.

This unit utilizes either continuous or intermittent spraying processes. This highly automated process offers high production efficiency, conserves raw materials, increases closed-cell foaming, reduces water absorption, and utilizes a three-in-one molding process for more reliable performance. This product is low-carbon, environmentally friendly, and offers significant economic and social benefits.

Production line parameters:
(1) Steel pipe coverage: 206mm-1820mm
(2) Processing capacity: ≤250m²/h
(3) Cleaning level: Sa2.5
(4) Materials used: Black material (isocyanate), white material (combined polyether), polyethylene
(5) Main equipment: Shot blasting and rust removal production line, polyurethane spraying production line, PE winding production line, consisting of three parts

HDPE Polyurethane Spray Foam Insulated Pipe Machine 500-1600mm
PU Foaming spary Preinsulation Pipe Continuous Production Line

The spraying and winding production process ensures the uniformity of the density of the insulation layer, improves product quality, and reduces production costs.

PUF spray PE winding preinsulated pipe production line consists of the following parts:

1) Steel pipe outwall shot blasting line

2) Polyurethane spray molding line
3) Polyethylene sheet extruding winding line
4) Water cooling line
5) End-cutting equipment

Main line Composition of the polyurethane coating steel preinsulated pipe equipment:

No.	name
1	External wall Shot blasting rust removel machine
2	Medium-frequency induction heating furnace
3	Polyurethane spray foaming unit
4	pipe rotator trolley
5	Single screw extruder and diehead mould
6	Finished pipe ends trimming machine
7	pipe Conveyers and racks
8	Electrical system and PLC

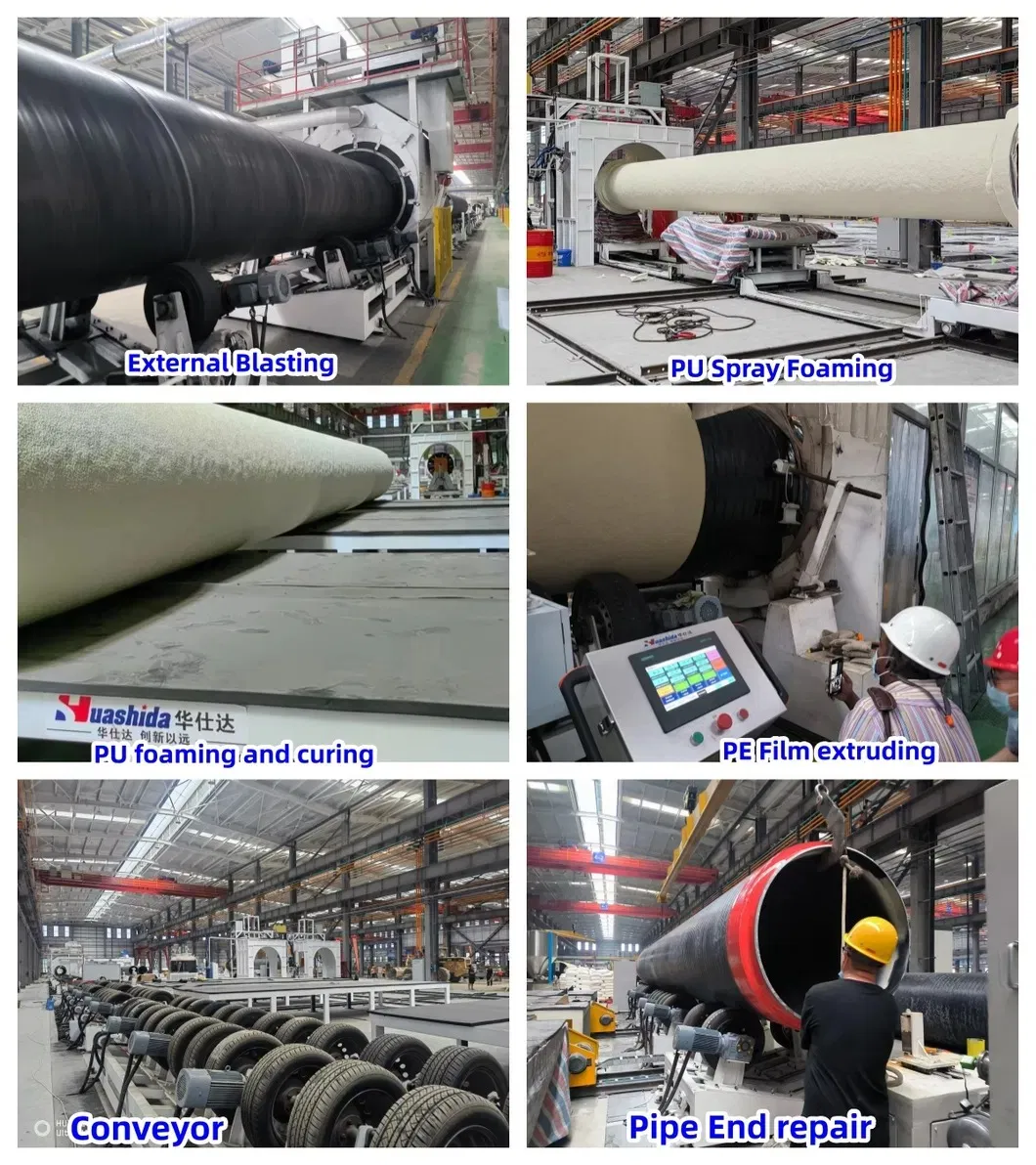

Production line equipment Photos show
HDPE Polyurethane Spray Foam Insulated Pipe Machine 500-1600mm
Rust Removal

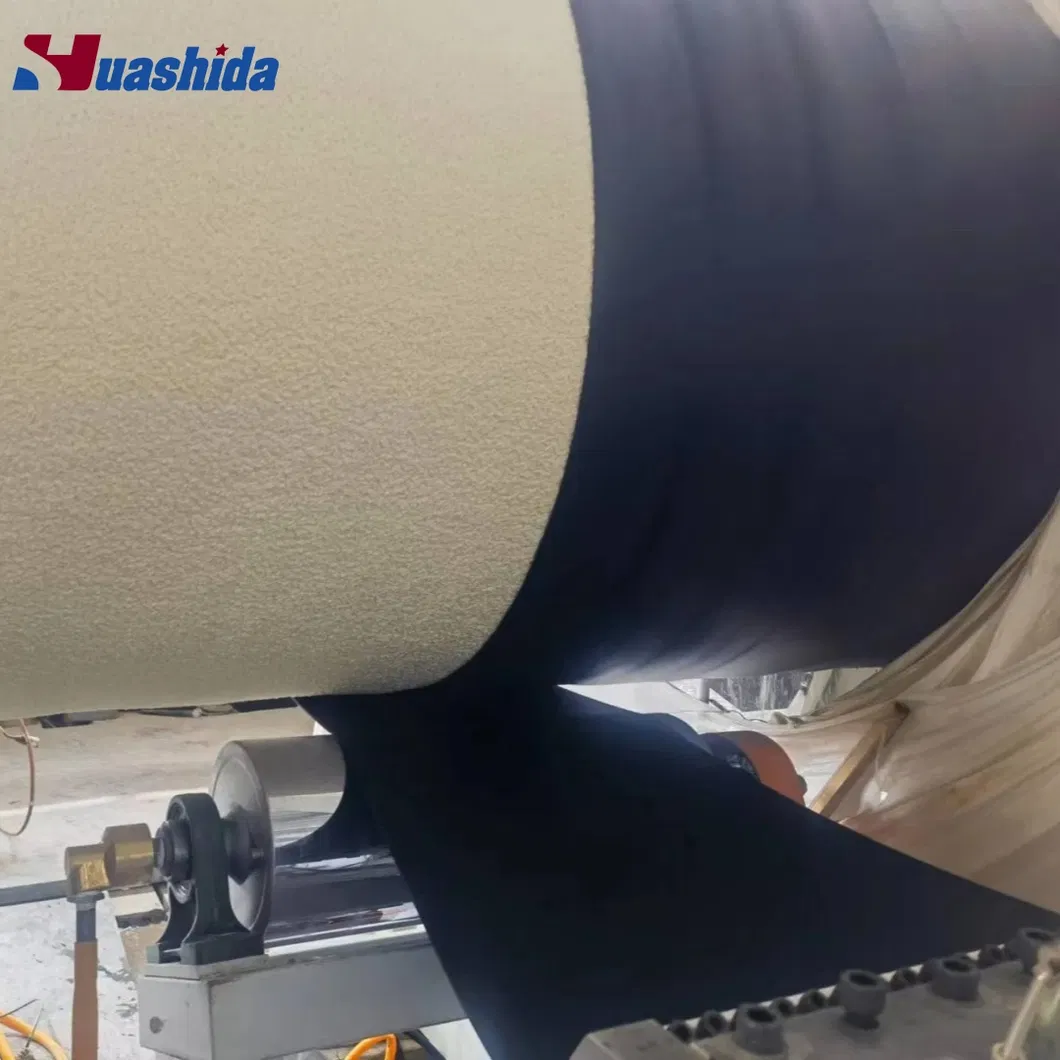

PE film jacket wrapping
HDPE Polyurethane Spray Foam Insulated Pipe Machine 500-1600mm

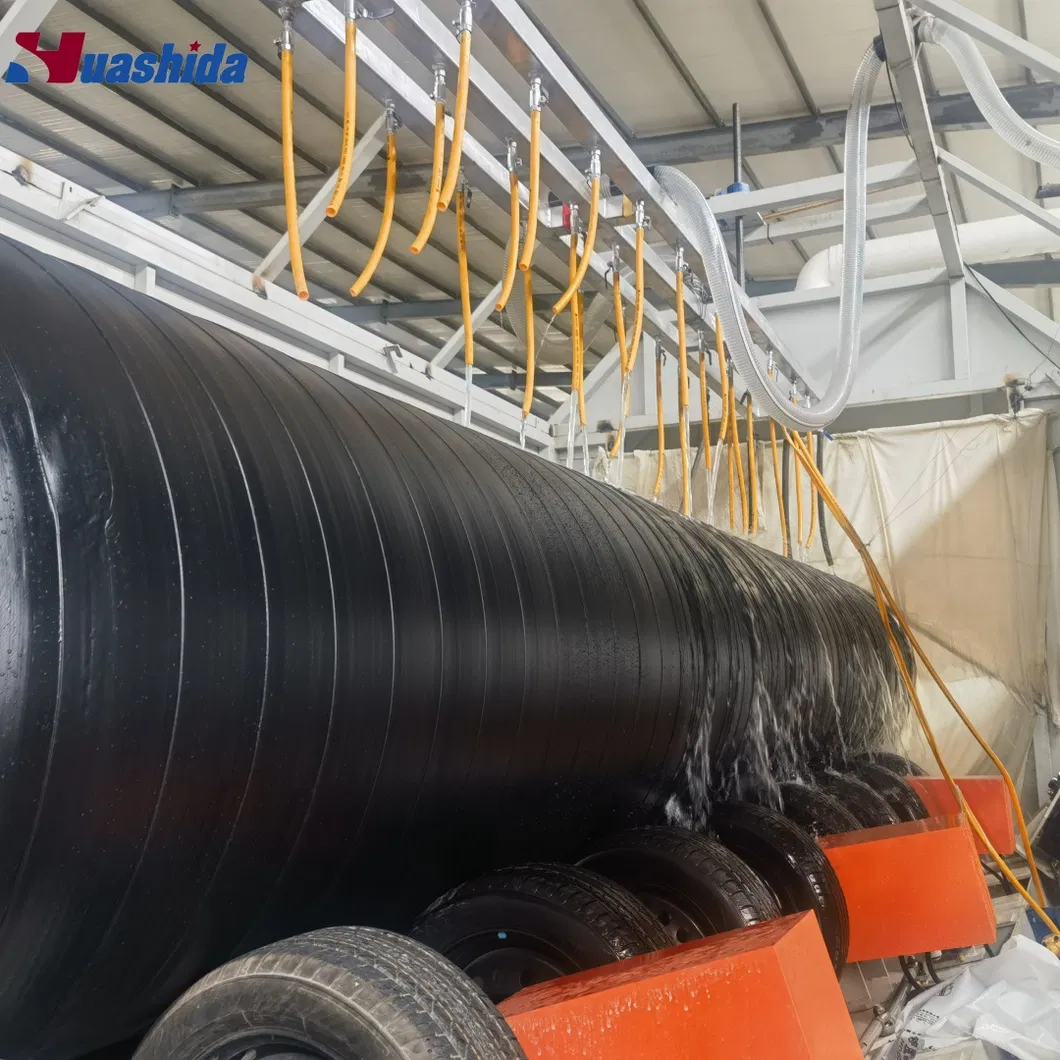

PE Jacket Water quenching
HDPE Polyurethane Spray Foam Insulated Pipe Machine 500-1600mm

Qingdao Huashida Machinery Co., Ltd was established in 2003. Since its inception, Huashida has focused on plastic polyurethane insulation pipe production line, 3LPE anticorrosion pipe production line, large diameter underground pipe production line and plastic pipe joints for 20 years. We always attach great importance to research and development,collaborating closely with Beijing University of chemical technology, Qingdao university of technology and scientific research institutions. by absorbing advanced technology home and abroad, after 22 years of endeavor we now rank one of the top 3 manufacturers in the industry in China. Huashida machines have been well received in Saudi Arabia, Kazakhstan, Uzbekistan, United Arab Emirates, Turkey, Russia, etc.
