Electro Fusion Sleeve Production Line 20mm Thickness for HDPE Pipes

Name: Electro Fusion Sleeve Production Line 20mm Thickness for HDPE Pipes
Brand: huashida
Price: 48 USD

China Electro Fusion Sleeve Production Line 20mm Thickness for HDPE Pipes wholesale

Brand Name : huashida

Model Number : PE Board

Certification : CE, ISO9001:2008

Place of Origin : qingdao,china

MOQ : 1

Price : US$48,000.00

Payment Terms : L/C,D/P,T/T,Western Union

Supply Ability : 50 Units/Month

Delivery Time : 60days

Packaging Details : Standard Package

Board Layers : Single Layer, Double Layer, Multi-Layer

Screw No. : Multi-screw

Width : 800mm-1600mm

Thickness : 0.1-30m

Applicable Materials : PP/PE/PS/HIPS/ABS/PVC

Contact Now

Electro Fusion Sleeve / Belt / Tape Girth Welding Joint Closure Production Line Thickness 20mm

This line major used on electro-fusion girth welding joint closure manufacture of HDPE structured wall spiral pipe and pre-insulated pipe(PU foam pipe with HDPE outside casing). Color, specification and thickness can all be customized.

Thickness Range: 5-30mm.
Width Options: 800 mm, 1200 mm, 1500 mm, 2000 mm, 3000 mm.
Applicable materials:PP/PE/PS/HIPS/ABS/PVC

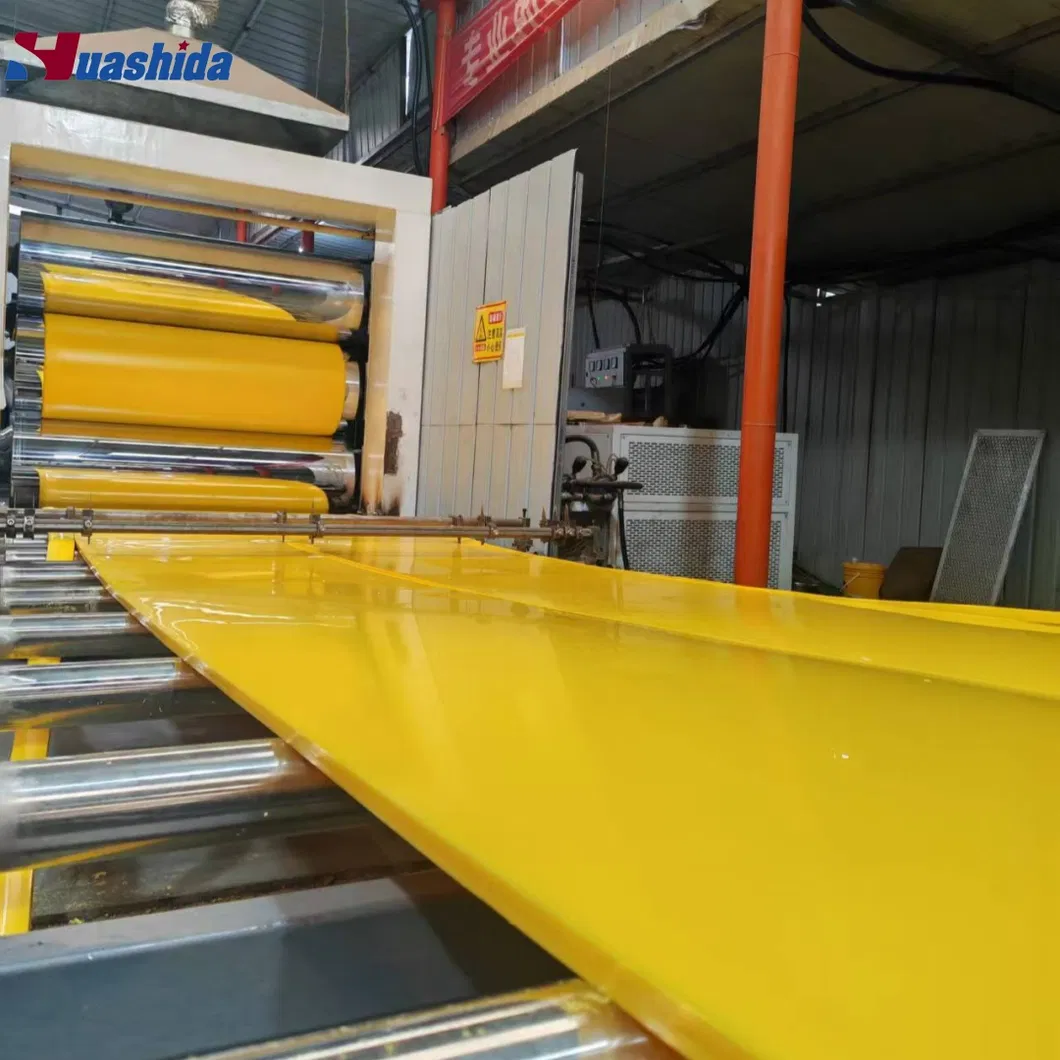

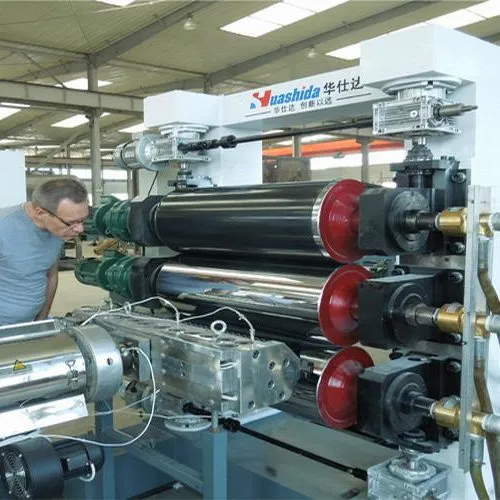

This extrusion line contains:
Extruder, Screen exchanger, Mould, Three-roller calender, Temperature controller, Cooling carrier frame, Haul-off, Cutter/Winder.

I. LDPE Sheet Extrusion Line
1	Hopper drier	1set
2	Vacuum loader	1set
3	SJ75/30 single screw extruder	1set
4	Mould	1set
5	Three-calender Machine	1set
6	Cooling rack	1set
7	Hauling machine	1set
8	Board shearing machine	1set
9	Stacker-made by USER	1set
10	Alloy net lamination device	1set

Electro Fusion Sleeve Production Line 20mm Thickness for HDPE Pipes

Electro-Fusion Mesh Material Composition:

Material: Thin-wall stainless steel (nickel and chrome alloy) processed under high-pressure stamping.
Thickness: 0.30 mm ± 0.015 mm.
Width: 50 mm ± 0.2 mm.
Length: 1770 mm ± 10 mm.

Electrical Resistivity Standards:

Mesh Width: 50 mm x 3 mm x 6 mm.
Mesh Hole Diameter: 0.3 mm.
Wire Resistivity: 0.8 Ω/m.

Resistivity of electrofusion mesh

(mm/m) Width of electrofusion mesh	(mmxmm) Mesh hole	mm Mesh wire	(Q/m) Resistivity
50	3x6	0.3	0.8

√Oil & Gas Pipelines: Securely joins and seals pipelines transporting fluids.

√Water Supply Systems: Ensures long-lasting, leak-proof connections.

√Industrial Processes: Suitable for chemical and heavy-duty applications.

Electro Fusion Sleeve Production Line 20mm Thickness for HDPE Pipes

Our Electro-Fusion Sleeve Production Line combines state-of-the-art technology with decades of expertise to deliver world-class products that meet the most stringent industrial requirements. Whether for oil, gas, or water pipeline projects, our sleeves ensure secure, durable, and efficient connections every time.Contact us today for a custom solution tailored to your pipeline needs!

Electro Fusion Sleeve Production Line 20mm Thickness for HDPE Pipes
